YD6-1600L Hybrid

Solicitar Presupuesto Get a Quote




    Description

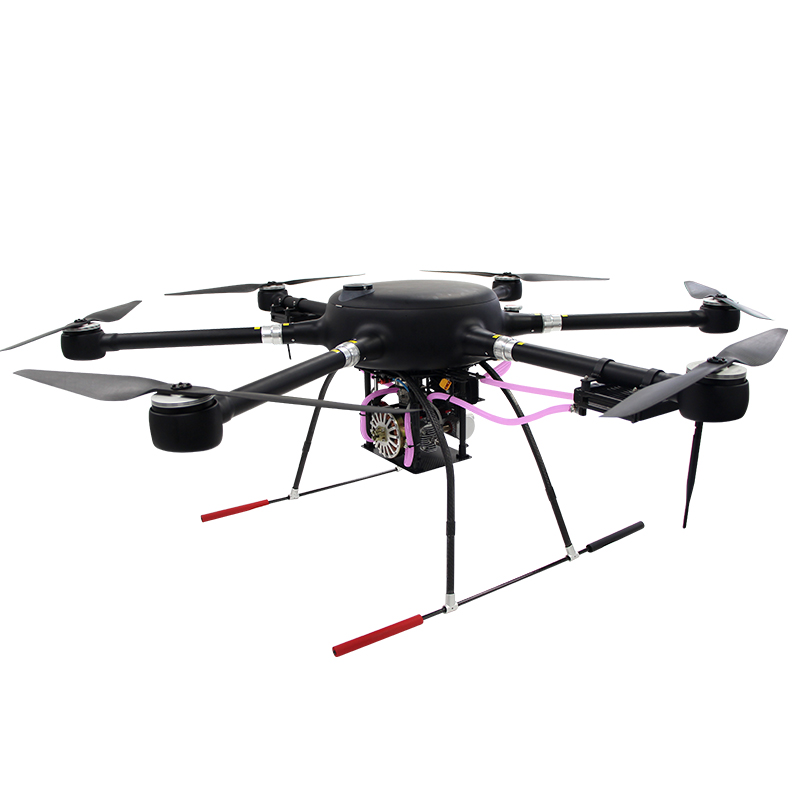

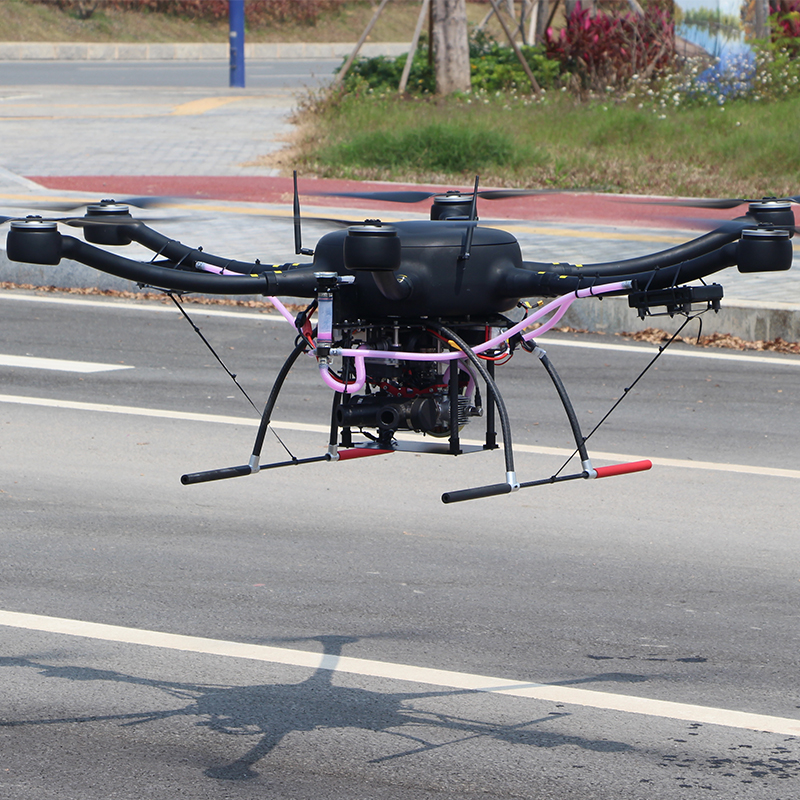

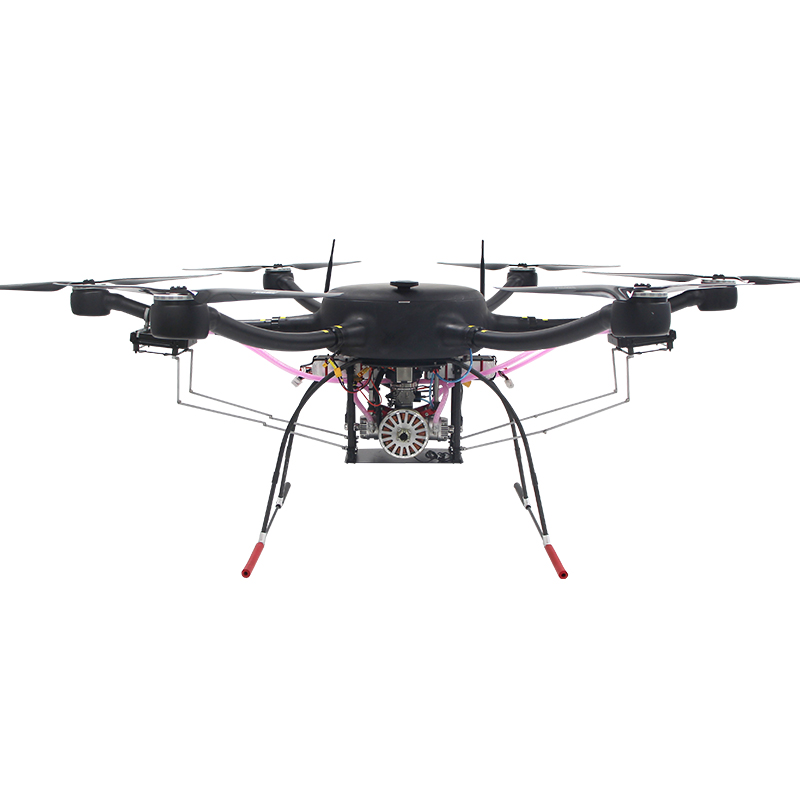

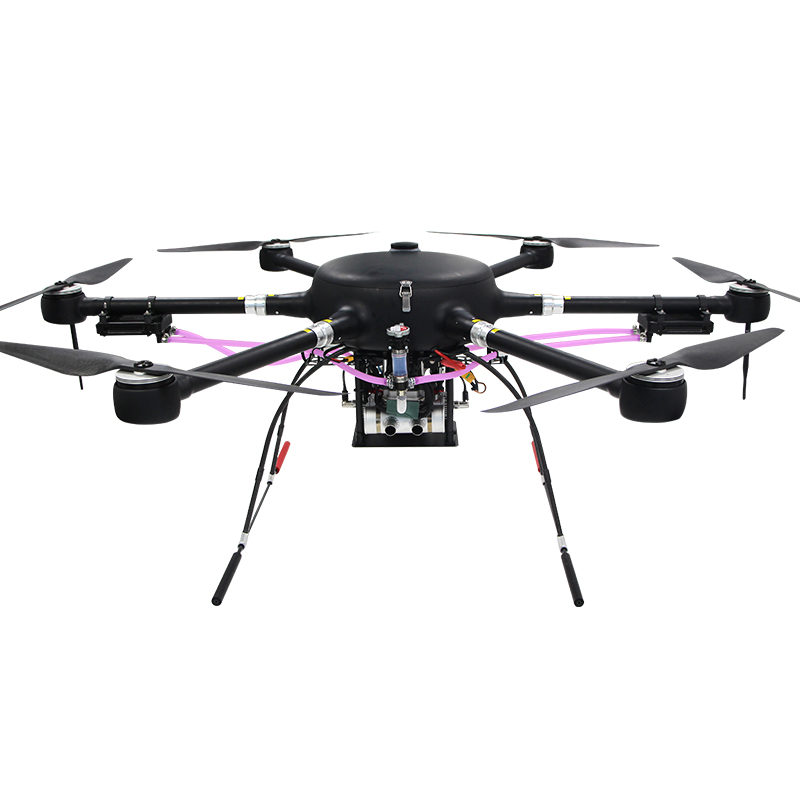

    The Yangda YD6-1600L, a petrol-electric hybrid drone, is designed to push traditional flight limits, thanks to its high-powered petrol generator, allowing it to operate for up to 2 hours with a 5kg payload, ideal for inspection, surveying, aerial photography, rescue and public safety missions, even in extreme weather conditions.

    • 4 kW, 3.6 kW or 6.0 kW hybrid motor: provides continuous and stable power, ideal for high altitude, low temperature or long distance flights.
    • Autonomy of up to 3.8 hours: with a payload of 3.4 kg, allowing extended missions without the need for recharging.
    • Payload capacity up to 10.5 kg: when using the 6.0 kW engine, suitable for carrying cameras, LiDAR sensors or other heavy equipment.
    • T-Motor propulsion system: renowned for its high performance and stability, ensuring safe and efficient flights.
    • Waterproof carbon fibre structure: designed to withstand adverse weather conditions, including rain and extreme temperatures.
    • Quick and portable assembly: the drone’s arms are detachable, making it easy to transport and set up in less than 5 minutes.
    • 90-second battery backup: in case of hybrid system failure, ensuring a safe landing.
    • Multiple payload compatibility: supports gimbal cameras, megaphones and other specialised equipment for a variety of applications.

    Features

    • Wheelbase: 1600mm
    • Cruise speed: 8m/s
    • Wingspan: 2350mm
    • Recommended altitude: 1000m ASL
    • Endurance: 2 hours / 5kg
    • Generator weight: 9.2kg (without back-up battery)
    • Working temperature: -20°C ~ 40°C
    • Voltage of generator: 12S
    • No payload weight: 26.6kg (with 9L fuel)
    • Generator output: Continuous 4.2kW
    • Max take-off Weight: 33.4kg
    • Fuel consumption rate: Hovering: 5.0L/h
    • Max payload: 6.5kg
    • Fuel tank: 9L
